Hydraulic Punching And Precise Cutting Guard Rail Roll Forming Machine High Speed

High-Speed Highway Guardrail Roll Forming Machine with Hydraulic Punching and Precise Cutting

These introductions refer only to the production line and configuration shown in the main image. Each machine is custom-built. Metalign welcomes your inquiry and provides the right production line—forming metal into profiles aligned to your needs.

1. Production Line Overview

• This production line is designed for manufacturing high-quality highway guardrail W panels using 3-4mm cold-rolled steel. Its advantages include high-speed production, precision engineering, and customized configurations suitable for large-scale infrastructure projects and road safety applications.

2. Profile Description

• This profile produces highway guardrail W panels from 3-4mm thick cold-rolled steel. The panels are durable, corrosion-resistant, and designed for safety applications in road construction and transportation infrastructure. The roll-forming process ensures high precision and consistent quality across all panels.

3. Production Process

• Decoiler-Leveling Machine-Hydraulic Punching-Roll Former-Hydraulic Cutter-Out Table

• The production starts with uncoiling the steel, which is then leveled and precisely punched. The material undergoes forming in the roll former, followed by hydraulic cutting to the desired length. The finished panels are discharged onto out tables for packaging or further processing.

4. Technical Parameters

5. Key Focus

• High-speed Production: With synchronized hydraulic punching and cutting, this line maintains high-speed operation and minimized downtime.

• Durability and Precision: The use of high-quality cold-rolled steel and advanced roll forming ensures durability and precise panel formation.

• Customization Options: This production line offers tailored configurations to meet specific needs in highway guardrail production, accommodating various panel sizes and features.

6. Production Line Components

7. Customization Options

• We offer customization options for this production line, particularly for the highway guardrail W panels. You can adjust the number of punching stations, configure the hydraulic cutting system for different panel lengths, or fine-tune the roll forming machine to meet specific design requirements. Additionally, we can adapt the line for varying steel thicknesses, such as 3mm or 4mm, to suit your specific project needs.

precise cutting guard rail roll forming machine

guard rail roll forming machine high speed

precise cutting cold roll forming machine

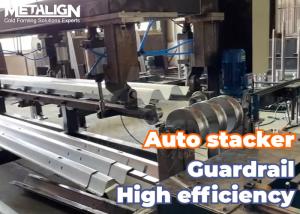

Hydraulic Punching And Precise Cutting Guard Rail Roll Forming Machine High Speed Images
