Embossed Roll Former Machine For Concrete Bonding Floor Decks

Name: Embossed Roll Former Machine For Concrete Bonding Floor Decks
Brand: METALIGN
Price: 1 USD

China Embossed Roll Former Machine For Concrete Bonding Floor Decks factory

Brand Name : METALIGN

Model Number : MD

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Cold Roll Forming Line for Galvanized Floor Decks with Ribbed Reinforcement

Key words : High-Speed Roll Former/Adjustable Deck Profile/Structural Metal Panels/0.8mm-1.2mm Thickness

Profile : Metal deck

Application : Concrete bond flooring / Structural building support / Metal roofing / Industrial deck panel

Material type : Galvanized steel

Material thickness : 0.8-1.5mm

Production speed : 15m/min

Main motor power : 22Kw

Forming stations : 27

Driving system : Chain

Frame structure : Wall panel structure

Shaft diameter : 95mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

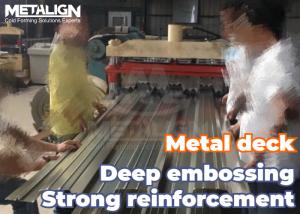

High-Speed Roll Former for Embossed Concrete Bonding Floor Decks

These introductions refer only to the production line and configuration shown in the main image. Each machine is custom-built. Metalign welcomes your inquiry and provides the right production line—forming metal into profiles aligned to your needs.

1. Production Line Overview

This production line is designed for construction and architectural clients, specializing in the manufacture of high-strength, galvanized steel floor decking with embossed patterns. It offers versatility, high-speed production, and superior strength for concrete bonding, making it a valuable choice for large-scale floor deck and roof panel manufacturers.

2. Profile Description

This floor deck is made of galvanized steel, ranging from 0.8mm to 1.2mm thickness. It features embossed dots for better bonding with concrete, while its design includes two reinforcing ribs for added strength. Commonly used in construction for flooring and roof systems, this deck ensures high durability and stability.

3. Production Process

3T Hydraulic Decoiler → Guide → Embossing Roller → Roll Former → Hydraulic Cutter
The steel coil is unwound by the hydraulic decoiler and guided into the embossing roller, where a custom surface pattern is applied. The roll former, with 24 forming stations, shapes the deck into the desired profile. Finally, the hydraulic cutter precisely cuts the metal deck to the required lengths.

4. Technical Parameters

Machine	Analysis
Hydraulic Decoiler	Controls steel coil feeding and ensures smooth, continuous material flow.
Guide	Positions the steel with precision, ensuring alignment for accurate forming.
Embossing Roller	Applies textured embossing for improved concrete adhesion, customizable for different designs.
Roll Former	24-station machine that forms precise metal profiles, ensuring strength and consistency.
Hydraulic Cutter	Ensures precise cuts for the metal deck with minimal waste and high accuracy.

5. Key Focus

High-Strength Bonding: The embossed surface promotes superior adhesion to concrete.
Efficient Production: 24 stations ensure precise forming with minimal waste and high output.
Customizable Features: The line offers customization in embossing, material thickness, and product lengths.

6. Production Line Components

Machine Name	Quantity
Hydraulic Decoiler	1 set
Guide	1 set
Embossing Roller	1 set (Customizable)
Roll Former	1 set (24 Stations)
Hydraulic Cutter	1 set
PLC Cabinet	1 set
Hydraulic Station	2 sets
Out Table	2 sets

7. Customization Options

We offer various customizable options, including embossing patterns to improve concrete adhesion, adjustments to rib designs for enhanced strength, and flexible production speeds. The system is adaptable to different thicknesses and can accommodate changes in material type for diverse applications.
